Feature and Specification

Details of Door

Honeycomb Core

DOOR CONSTRUCTION

HONEYCOMB CORE

  • Kiln dried timber forming stile & rail
  • Selected face materials on both side
  • Honeycomb core (127mm hole)
  • Lock block on both sides
Solid Core

DOOR CONSTRUCTION

SOLID CORE

  • Kiln dried timber forming stile & rail
  • Selected face materials on both side
  • Lock block on both sides
  • Chipboard core or equivalent
  • Cavity
SLP Fire Resistant Door - Single Leaf

DOOR FRAME SIZE - SINGLE LEAF

(max size 1200mm X 2400mm)

SLP Fire Resistant Door - Double Leaves

DOOR FRAME SIZE - DOUBLE LEAVES

(max size 2400mm X 2400mm)

SLP Fire Resistant Door

SLP Safety Door

  • Model: FGLD/1HR/SL(1) & SL(2) FGLD/1HR/EL(1)
  • Door Frame Material : 140 x 65 x 1.2mm EG Steel Door Frame Double Rebate (SL & DL)
  • Door leaf Max Size (SL) : 1115 x2345 x 44mm
  • Door leaf Max Size (DL) : 2311 x 2345 x 44mm
  • Door closer/Hinges/Mortise Lockset : Brand: SLP
  • Electronic Lockset : Brand: JENBERG

SLP Fire Resistant Door is tested and approved to Malaysian Standard of MS 1073 : Part 3 : 1996 (Amd. 1:2003)

Fire Resistant Door set come complete with the door, metal frame and ironmongeries. Lockset opening are pre-drilled in the factory to significantly reduce on-site installation cost.

SLP offers other application such as:

  • Standard size wired glass (150 x 300mm)
  • Various Finishes
  • Groove Lines

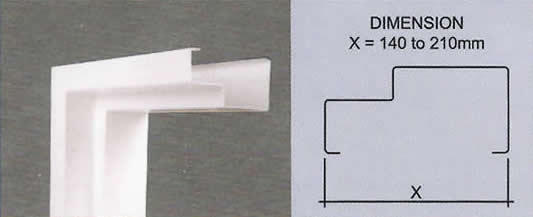

Details of Door Frame

PARTS & ACCESSORIES

SLP FIRE RESISTANT DOOR

SLP Fire Resistant Door tested and approved with complete range of ironmongeries.

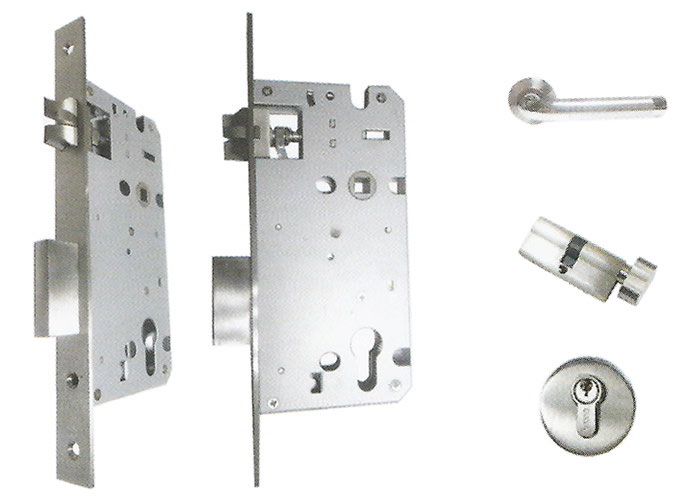

Mortise Lockcase

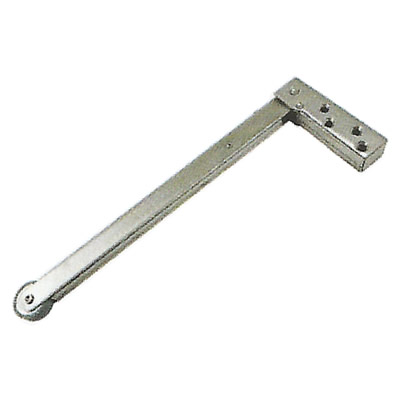

Door Selector (for DL)

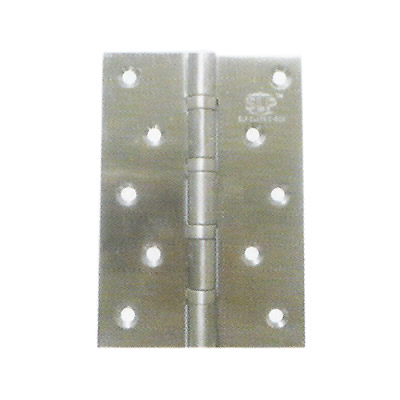

Hinges

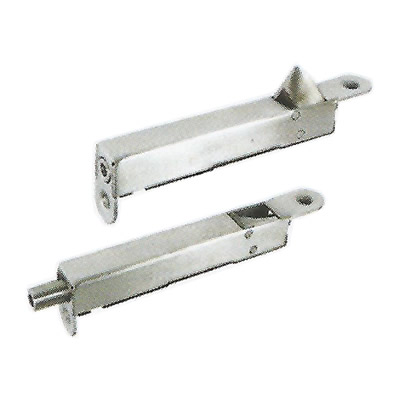

Auto Bolt (for DL)

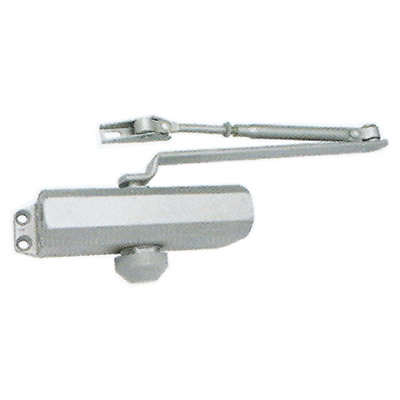

Door Closer
